Stretch Series

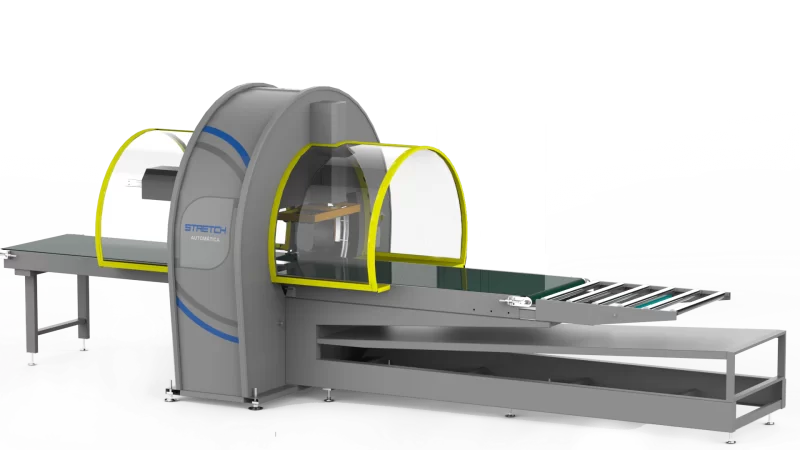

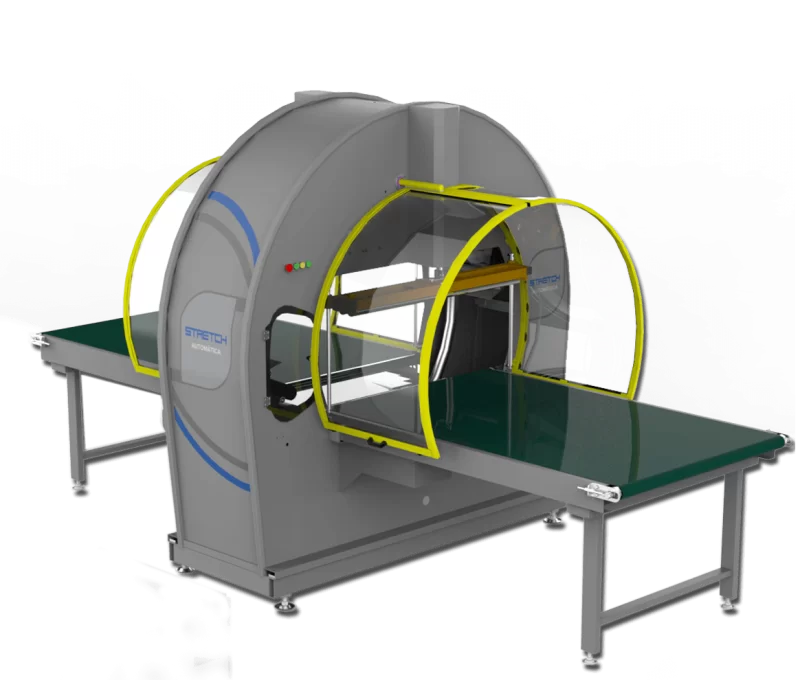

Stretch Automática
In the Stretch Automatic Series, productivity gains in the packaging process are reinforced by savings.
Up to 5 packs per minute
Programming that saves film
HMI operation
Compliant with NR-12
In the Stretch Automatic Series, productivity gains in the packaging process are reinforced by savings, with intelligent programs, allow consumption of the least amount of raw material to packing products. Ideal for compacting parts, it produces up to 5 volumes per minute and is suitable for a wide range of products in different segments. Suitable for Brasilian safety standard NR-12 and production of up to 05 volumes per minute.
- Excellent compression of the parts
- Intuitive MMI
- For many segments
- Higher productivity with low energy consumption
Video
The machine in operation
Technical data
| Specification | ES-800 | ES-1000 | ES-1200 |
|---|---|---|---|
| Passage width (mm)At maximum width, passage height is 100 mm. | 800 | 1000 | 1200 |
| Conveyor width (mm) | 600 | 800 | 1000 |
| Passage height (mm) | 300 | 300 | 300 |
| Ring inner diameter (mm) | 945 | 1145 | 1345 |
| Infeed and outfeed conveyors (mm) | 1900 | 1900 | 1900 |
| Total layout length (mm) | 4255 | 4255 | 4255 |
| Total layout width (mm) | 1855 | 2055 | 2255 |
| Total weight (kg) | 805 | 1105 | 1305 |
| Total power (kW) | 3 | 3 | 3 |
| Air consumption (L/cycle) | 15 | 20 | 25 |
| Working speed (m/min) | 7–20 | 7–20 | 7–20 |
| Output (packs/min) | 1–5 | 1–5 | 1–5 |
| Stretch film reel | Maximum width 166 mm, Ø 250 mm reel and Ø 75 mm core. |
|---|
Download the data sheet with drawings and layout dimensions.Download data sheet (PDF)
Standard equipment
- HMI for packaging setup
- Infeed and outfeed conveyors
Options
Cardboard box magazine
For manual boxing of the pack right after wrapping.
Request a quote: Stretch Automática
Tell us what you pack and your daily volume. Sales replies with the right machine and a quote.
